Microdisplay Products
RAONTECH delivers high resolution display panels, high speed & low power controller ICs, and high performance optical engine modules for customers’ diverse applications such as AR·MR·VR smart glasses, FPV goggles, HMD, HUD, and pico projectors.
Microdisplay Panel
RDP series consists of highly integrated microdisplay panels for optical display system. RDP series provides high resolution in a highly compact panel.
RDP551F
- Resolution: Full HD (1920 x 1080) & 2K1K (2048 x 1024)
- Active Area: 0.55″ / 0.57″
- Pixel Pitch: 6.3 µm
- Module Size: 25.8 x 10 mm
RDP502H
- Resolution: HD (1280 x 720)
- Active Area: 0.5″
- Pixel Pitch: 8.6 µm
- Module Size: 24.8 x 10.8 mm
RDP370F
- Resolution: Full HD (1920 x 1080)
- Active Area: 0.37″
- Pixel Pitch: 4.3 µm
- Module Size: 23.4 x 8.65 mm
RDP370F-X
- Resolution: Full HD (1920 x 1080)
- Active Area: 0.37″
- Pixel Pitch: 4.3 µm
- Module Size: 13.8 x 8.5 mm
RDP250H
- Resolution: HD (1280 x 720)
- Active Area: 0.25″
- Pixel Pitch: 4.3 µm
- Module Size: 8.5 x 8.7 mm
RDP700Q
*sample only- Resolution: WQHD (2560 x 1440)
- HD/FHD to QHD Video Scaler
- Active Area: 0.7″
- Pixel Pitch: 6.05 µm
- Module Size: 28.3 x 12 mm
Controller IC
RDC series processes image processing along with LED controlling and data formatting for RDP series. One controller IC drives two panels simultaneously.
RDC200A*
- Image Size: HD to FHD
- Format: LVDS, MIPI
- Frequency: Up to 110 Hz
- Dimension: 7.4 x 7.4 mm
*Learn about CoKOA function

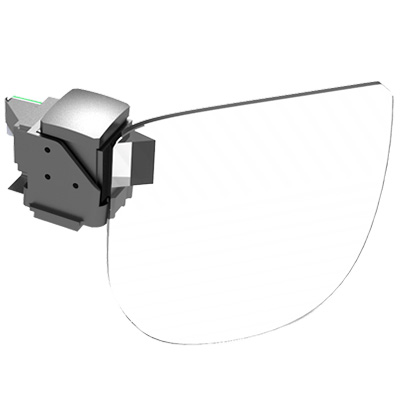

Optical Engine Module for EV KIT
RAON provides optical engine modules in the evaluation kit for the developers to easily evaluate RAON microdisplay panels.
OE VISION
- Type: See-through
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 40°
F2-55
- Type: See-through
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 47°
F2-C55
- Type: See-closed
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 47°
R-VISTA55
- Type: See-through
- Panel: RDP551F
- Resolution: 1920 x 1080
- FoV: 45°
R-VISTA50
- Type: See-through
- Panel: RDP502H
- Resolution: 1280 x 720
- FoV: 40°
R-VIEW50
- Type: See-closed
- Panel: RDP502H
- Resolution: 1280 x 720
- FoV: 40°
R-VISTA70
- Type: See-through
- Panel: RDP700Q
- Resolution: 2560 x 1440
- FoV: 55°
- *Available as sample only

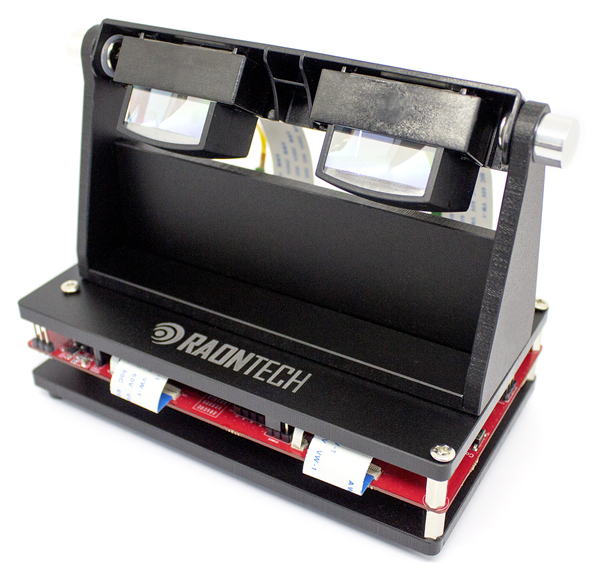

Evaluation Kit
Evaluate the performance and characteristics of RAON microdisplay solution and develop your own system with RAON’s reference design.
- Optical Engine Module
- Microdisplay Panel
- Controller Board
- FPCB Cables
- Control Software Tools
*When ordering, please choose panels and/or optics you would like to evaluate.
